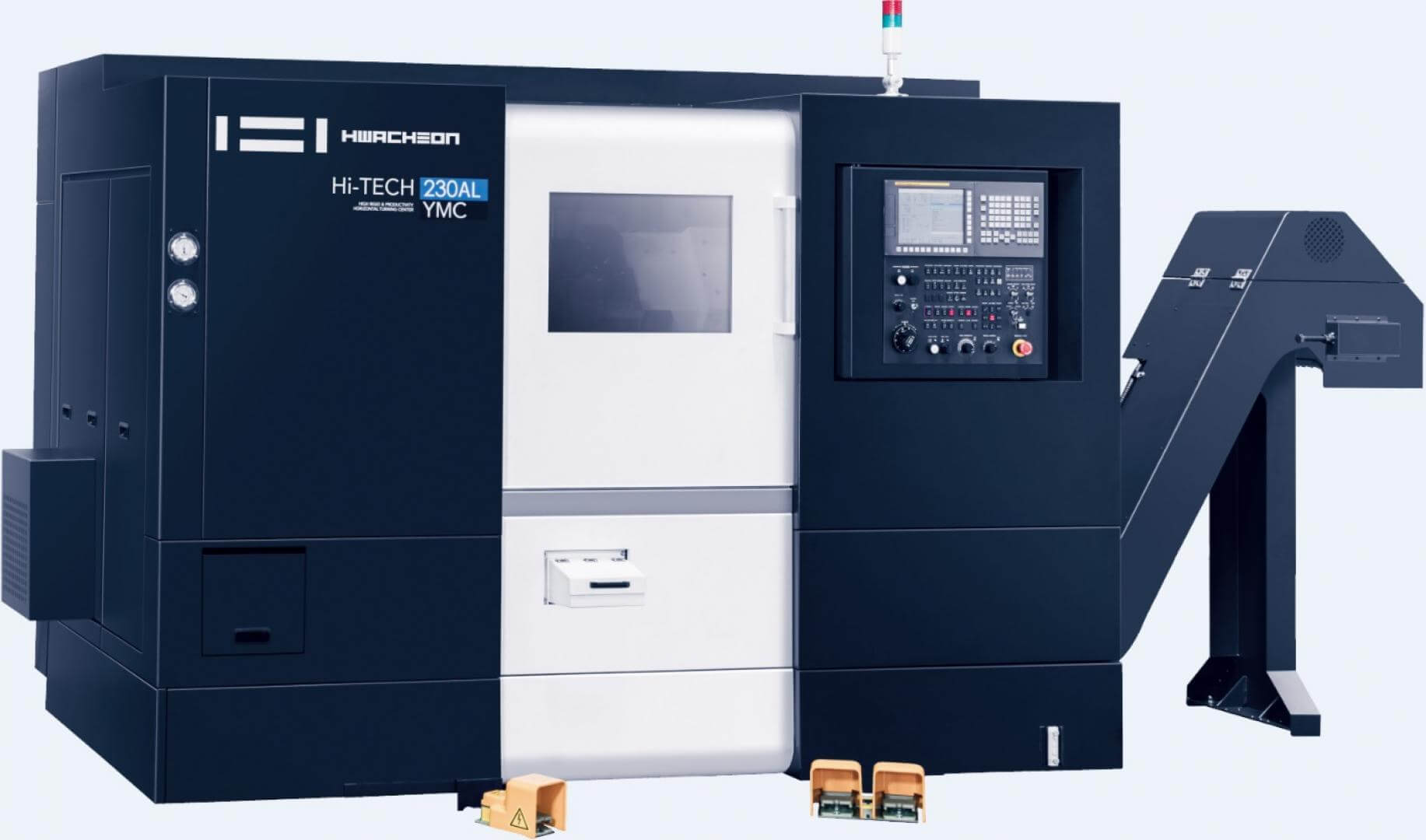

Hwacheon Hi-Tech 230BL YMC
Horizontal lathe with box guideways for Ø200 – 250 mm – chuck, Y axis, sub spindle
New standard for lathes with chuck sizes of 8-10 inches – reliability at all levels. The Hi-TECH 230 owes its particularly reliable machining performance to its exceptional rigidity and improved specifications in comparison with other 8 to 10 inch lathes with box guideways. In addition to this, it is also particularly easy to operate and to service. The model with the Y axis has a traverse path of up to ±60 mm – the largest in its class.
Better machining performance through
- Improved rigidity of the feed system on the X and Y axis
- Improved machine bed rigidity
- 12 position turret with 24 stations
- Higher drive power on the main spindle
- Best-in-class drive power by driven tools
Easy to maintain
- Easy to remove coolant tank from the front
- Swarf discharge can be from the side of the machine or from the back
- Coolant tank monitoring as standard
- Prevention of leaks in the turret through external coolant supply
High ease of operation
- Easier door operation
- Prevention of swarf accumulation on the lower edge of the door
- Control panel can be turned through 90°
- Software for further improving operation and machining processes is available
